Issue with AttitudesSequence

Orekit Python Wrapper usage
1

Hello Orekit community,
I am quite new to the Orekit python wrapper. I am working on a satellite attitude control simulation using the Orekit Python Wrapper, usingAttitudesSequence to switch between different pointing modes.
I have encountered a very strange behavior when mixing different attitude providers in the same sequence.
I have a list of targets on the ground. For each target, I want the satellite to maneuver from NadirPointing, perform the observation, and return to NadirPointing. I have two types of observation modes:

  1. SPOTLIGHT: Uses TargetPointing to track a specific ground intersection.

  2. STRIPMAP: Uses LofOffset (w.r.t. VVLH) to maintain a constant roll/yaw angle offset.

The Problem:

  • If I generate a sequence of only TargetPointing maneuvers, everything works perfectly (up-left plot).

  • If I generate a sequence of only LofOffset maneuvers, everything works perfectly (up-right plot).

  • The bug: If I alternate them (e.g., Target 1 is SPOTLIGHT, Target 2 is STRIPMAP), the STRIPMAP maneuver fails (bottom plot).

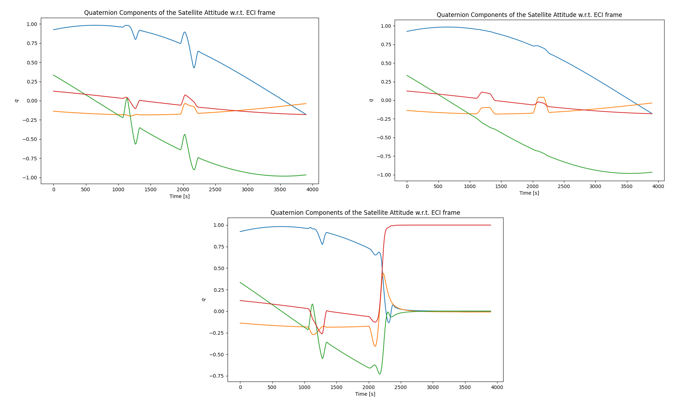

image694×407 39.1 KB

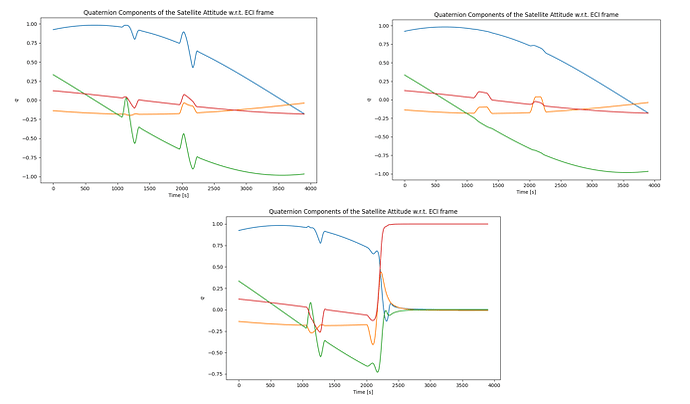

You can clearly observe this behavior in the attached plots showing the attitude evolution. Here are the relevant snippets of how I’ve built the sequence:



#targets = target_generation_spotlight(sgp4_propagator, init_date, end_date, utc, inertial_frame, earth, along_track_separation=900.0, step=300.0)

#targets = target_generation_stripmap(sgp4_propagator, init_date, end_date, utc, inertial_frame, earth, along_track_separation=900.0, step=300.0)

targets = target_generation_spotlight_stripmap(sgp4_propagator, init_date, end_date, utc, inertial_frame, earth, along_track_separation=900.0, step=300.0)

print("\nComputing maneuvering time for each target...")
for tgt in targets:

    if tgt["mode"] == "SPOTLIGHT":
        target_pointing = TargetPointing(inertial_frame, tgt["geodetic point"], earth)

        t_start = 0.0

        while True:

            state = sgp4_propagator.propagate(search_date)

            att = target_pointing.getAttitude(state.getOrbit(), search_date, inertial_frame)
            rot_ECI_BRF = att.getRotation()
            rot_ECI_VVLH = vvlh_frame.rotationFromInertial(search_date, state.getPVCoordinates(inertial_frame))
            rot_VVLH_BRF = rot_ECI_BRF.compose(rot_ECI_VVLH.revert(), RotationConvention.VECTOR_OPERATOR)
            angles_lof_offset = rot_VVLH_BRF.getAngles(RotationOrder.ZYX, RotationConvention.FRAME_TRANSFORM)

            rot_VVLH_BRF_ft = rot_ECI_VVLH.revert().compose(rot_ECI_BRF, RotationConvention.FRAME_TRANSFORM)
            pitch_start_deg = math.degrees(rot_VVLH_BRF_ft.getAngles(RotationOrder.ZYX, RotationConvention.FRAME_TRANSFORM)[1])

            if pitch_start_deg >= 30.0:
                tgt["start_yaw"] = angles_lof_offset[0]
                tgt["start_pitch"] = angles_lof_offset[1]
                tgt["start_roll"] = angles_lof_offset[2]
                break
            t_start -= 1.0

        J_pitch = diag_J[1]
        alpha_max_pitch = max_torque / J_pitch

        delta_theta_rad = math.radians(30.0)
        t_slew = math.sqrt((2.0 * delta_theta_rad) / alpha_max_pitch)


        t_end = 0.0

        while True:
            search_date = tgt["date"].shiftedBy(t_end)
            state = sgp4_propagator.propagate(search_date)

            att = target_pointing.getAttitude(state.getOrbit(), search_date, inertial_frame)
            rot_ECI_BRF = att.getRotation()
            rot_ECI_VVLH = vvlh_frame.rotationFromInertial(search_date, state.getPVCoordinates(inertial_frame))
            #rot_VVLH_BRF_ft = rot_ECI_BRF.compose(rot_ECI_VVLH.revert(), RotationConvention.FRAME_TRANSFORM)
            rot_VVLH_BRF_ft = rot_ECI_VVLH.revert().compose(rot_ECI_BRF, RotationConvention.FRAME_TRANSFORM)

            pitch_end_deg = math.degrees(rot_VVLH_BRF_ft.getAngles(RotationOrder.ZYX, RotationConvention.FRAME_TRANSFORM)[1])

            if pitch_end_deg <= -30.0:
                break
            t_end += 1.0

        tgt["t_start"] = t_start
        tgt["t_maneuver"] = t_slew + 2*t_r
        tgt["t_pre_pointing"] = t_start - tgt["t_maneuver"]
        tgt["t_end"] = t_end

        print(f"Target at {tgt['date']} | Mode: SPOTLIGHT | Roll Angle: {tgt['roll_deg']} deg | Window: {tgt['date'].shiftedBy(tgt['t_pre_pointing'])} UTC to {tgt['date'].shiftedBy(tgt['t_end'] + tgt['t_maneuver'])} UTC")
        print(f"Total maneuvering time: {tgt['t_end'] + tgt['t_maneuver'] - tgt['t_pre_pointing']} s")
        #print(f"Starting Pitch: {pitch_start_deg}")

    elif tgt["mode"] == "STRIPMAP":

        J_roll = diag_J[0]

        alpha_max_roll = max_torque / J_roll

        delta_theta_rad = math.radians(25.0)

        t_slew = math.sqrt((2.0*delta_theta_rad) / alpha_max_roll)

        tgt["t_maneuver"] = t_slew + 2.0*t_r
        tgt["t_start"] = -tgt["t_maneuver"]
        tgt["t_pre_pointing"] = -tgt["t_maneuver"]
        tgt["t_end"] = tgt["duration"]

        print(f"Target at {tgt['date']} | Mode: STRIPMAP | Azimuth Angle: {tgt['azimuth_deg']} deg | Roll Angle: {tgt['roll_deg']} deg | Window: {tgt['date'].shiftedBy(tgt['t_pre_pointing'])} UTC to {tgt['date'].shiftedBy(tgt['t_end'] + tgt['t_maneuver'])} UTC")
        print(f"Total maneuvering time: {tgt['t_end'] + tgt['t_maneuver'] - tgt['t_pre_pointing']} s")

attitude_sequence = AttitudesSequence()
attitude_sequence.resetActiveProvider(nadir_pointing)

for tgt in targets:

    if tgt["mode"] == "SPOTLIGHT":
        target_provider = TargetPointing(inertial_frame, tgt["geodetic point"], earth)
        t_switch_to_target = tgt["t_pre_pointing"]
        t_slerp = tgt["t_maneuver"]
        t_switch_to_nadir = tgt["t_end"]

    elif tgt["mode"] == "STRIPMAP":
        target_provider = LofOffset(inertial_frame, LOFType.VVLH, RotationOrder.ZYX, math.radians(tgt["azimuth_deg"]), 0.0, math.radians(tgt["roll_deg"]))

        t_switch_to_target = tgt["t_pre_pointing"]
        t_slerp = tgt["t_maneuver"]
        t_switch_to_nadir = tgt["t_end"]

    switch_to_target_date = tgt["date"].shiftedBy(t_switch_to_target)
    switch_to_nadir_date = tgt["date"].shiftedBy(t_switch_to_nadir)

    target_detector = DateDetector(switch_to_target_date).withMaxCheck(10.0).withThreshold(1e-3).withHandler(ContinueOnEvent())
    nadir_detector = DateDetector(switch_to_nadir_date).withMaxCheck(10.0).withThreshold(1e-3).withHandler(ContinueOnEvent())

    attitude_sequence.addSwitchingCondition(nadir_pointing, target_provider, target_detector, True, False, t_slerp, AngularDerivativesFilter.USE_RR, None)
    attitude_sequence.addSwitchingCondition(target_provider, nadir_pointing, nadir_detector, True, False, t_slerp, AngularDerivativesFilter.USE_RR, None)

To avoid state machine ambiguity, I also tried instantiating a new NadirPointing object for every return phase, but the result remains exactly the same
Any help would be greatly appreciated. Thank you!
