Hi Zudo:
While trying to run the SatTrackingExample, I wondered whether the satellite-to-ground link might have the same kind of issue that had appeared earlier with the inter-satellite link.
So I moved the example’s Las-Vegas station to a location near the equator [–80°, 0°] (roughly HaMa) and left every other parameter unchanged—my only goal was to guarantee that, at the start of the scenario, at least one station would have the satellite in view.

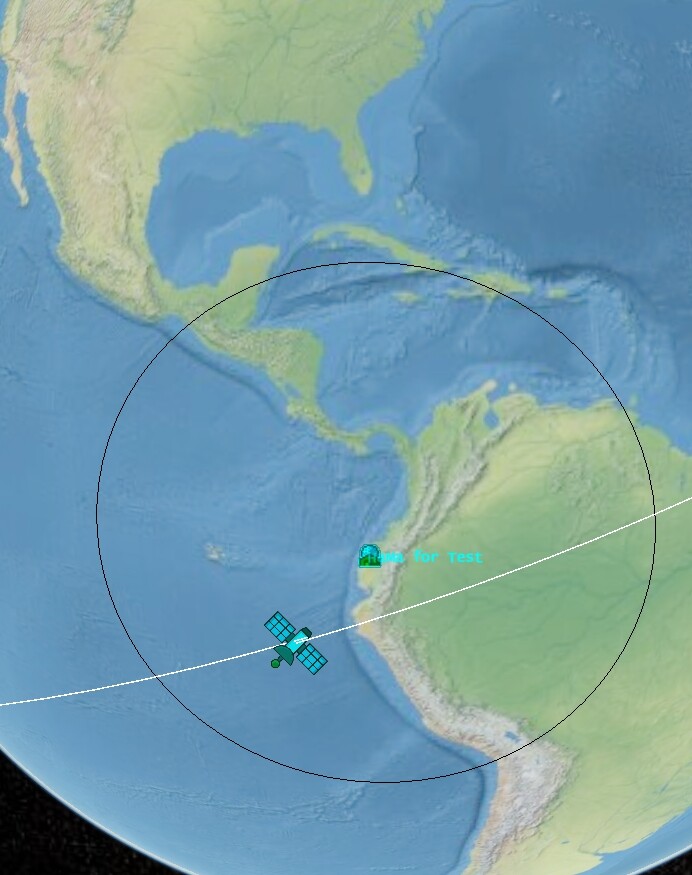

After running the case I noticed something contradictory:
The Output CZML segment:
"name": "Line between HaMa for Test and Spacecraft",
"availability": [
"0001-01-01T00:00:00Z/2024-03-15T00:00:00Z",
"2024-03-15T00:00:00Z/2024-03-15T00:08:01Z",
"2024-03-15T00:08:01Z/2024-03-15T02:00:12Z",
"2024-03-15T02:00:12Z/2024-03-15T02:12:15Z",
...
]
claims the line should exist from the very first instant, but the corresponding Boolean array
"show": [
{
"interval": "0001-01-01T00:00:00Z/2024-03-15T00:00:00Z",
"boolean": true
},
{
"interval": "2024-03-15T00:00:00Z/2024-03-15T00:08:01Z",
"boolean": false
},
{
"interval": "2024-03-15T00:08:01Z/2024-03-15T02:00:12Z",
"boolean": false
},
{
"interval": "2024-03-15T02:00:12Z/2024-03-15T02:12:15Z",
"boolean": true
},
...
]
sets the line to not be shown during those same initially-available intervals.
That looks inconsistent—possibly a bug in LineOfVisibilityBuilder or something.
Sorry I haven’t dived into the source to pinpoint the exact problem; after the changes that were made for the last “inter-satellite-link” issue, the code looks pretty different and I’m still getting my bearings.
At first I hesitated to open yet topic—I felt like the guy who borrows a friend’s bike and only complains about the scratches without ever saying thanks. But if pointing out the wobble keeps the next rider from getting hurt, it’s worth looking like a nag.
Thanks for all the hard work, and hope all friends ride safe!
Below is my test code. Basically, I changed nothing except moving the Las-Vegas station to HaMa (–80°, 0°).
